Self Supporting Aerial OPGW Fiber Optic Cable Overhead Optical Ground Wire 48 Core

Self Supporting Aerial OPGW Fiber Optic Cable Overhead Optical Ground Wire 48 Core

Brand Name: HXCOWO
Model Number: HX-DL2
MOQ: 1000 meters
ราคา: Negotiable
Packaging Details: Wooden shaft+Export cardboard box
Detail Information
Place of Origin:
Guangdong, China
ได้รับการรับรอง:
RoHS
ประเภท:
สายไฟเบอร์ไฟฟ้า
จำนวนตัวนำ:
≥ 10
ชื่อสินค้า:
สายไฟเบอร์ OPGW
การใช้งาน:
โทรคมนาคม
ความยาว:
ความยาวที่กำหนดเอง
ประเภทไฟเบอร์:
G652D/G657A1/G657A2
แพ็คเกจ:
กลองไม้
จํานวนเส้นใย:
2-288 คอร์
คําสําคัญ:
ความเร็วสูง
อุณหภูมิการทํางาน:
40~+70
บริการ:
OEM ODM ยอมรับ
ท่าเรือ:
เชียงใหม่
Supply Ability:
1500000 Piece/Pieces per Month
High Light:

Aerial OPGW Fiber Optic Cable

,

Self Supporting OPGW Fiber Optic Cable

,

Overhead Optical Ground Wire

Product Description

High Speed 48 Core Self-Supporting Aerial OPGW Fiber Optic Cable for Overhead Ground Wire

TECHNICAL PARAMETERS



Cross-Sectional Area
(mm²)
Rated Breaking Force
(kn)
Fiber Cable Diameter
(mm)
Fiber Cable Weight
(kg/km)
40
54
8.7
313
50
61.4
9.6
348
60
62.7
10.8
391
70
80.8
11.4
478
80
84.6
12
538
90
57.3
12.6
587
PRODUCT FEATURES



①Using advanced stainless steel pipe production technology, the pipe is filled with water-blocking compounds



②The short-circuit current causes little mutual interference between the power grid and the communication network



③The remaining length of the optical fiber and the cable core twisting pitch ensure that the optical cable is not stressed when operating at maximum tension



④Compact structure, high tensile strength



⑤The specifications are similar to commonly used ground wires, and the installation is very convenient and can directly replace the original ground wires



PRODUCT DESCRIPTION
Self Supporting Aerial OPGW Fiber Optic Cable Overhead Optical Ground Wire 48 Core 0

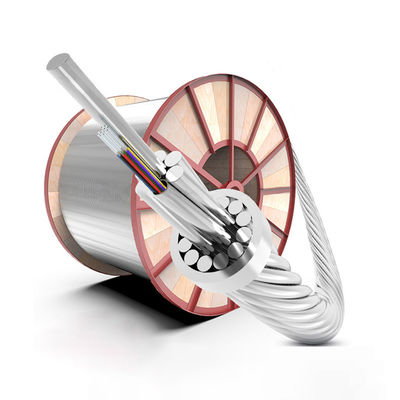

POWER FIBER OPTIC CABLE OPGW

High-speed and stable transmission
OPGW model cross-section optional: 30/40/50/60/70/80/90/100

Self Supporting Aerial OPGW Fiber Optic Cable Overhead Optical Ground Wire 48 Core 1

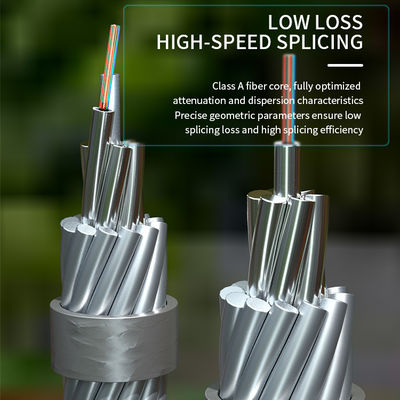

LOW LOSS, HIGH-SPEED SPLICING
Class A fiber core, fully optimized attenuation and dispersion characteristics
Precise geometric parameters ensure low splicing loss and high splicing efficiency
Self Supporting Aerial OPGW Fiber Optic Cable Overhead Optical Ground Wire 48 Core 2

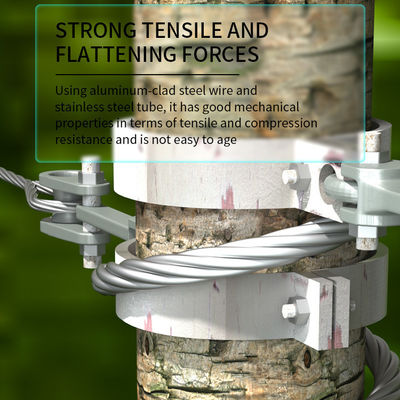

STRONG TENSILE AND FLATTENING FORCES
Using aluminum-clad steel wire and stainless steel tube, it has good mechanical properties in terms of tensile and compression resistance and is not easy to age
Self Supporting Aerial OPGW Fiber Optic Cable Overhead Optical Ground Wire 48 Core 3

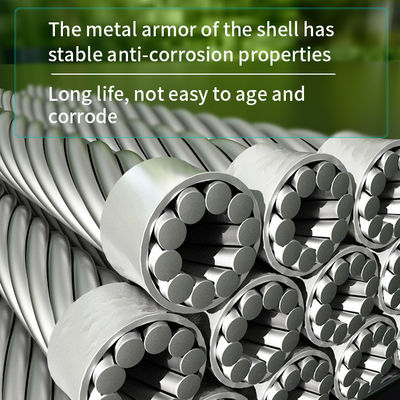

The metal armor of the shell has stable anti-corrosion properties
Long life, not easy to age and corrode
Self Supporting Aerial OPGW Fiber Optic Cable Overhead Optical Ground Wire 48 Core 4

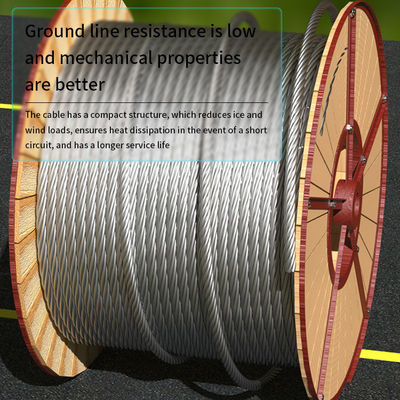

GROUND LINE RESISTANCE IS LOW AND MECHANICAL PROPERTIES ARE BETTER

The cable has a compact structure, which reduces ice and wind loads, ensures heat dissipation in the event of a short circuit, and has a longer service life
Self Supporting Aerial OPGW Fiber Optic Cable Overhead Optical Ground Wire 48 Core 5

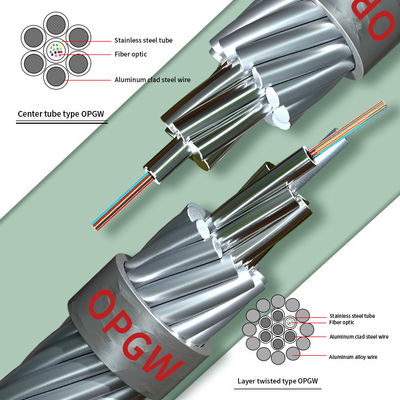

OPGW STRUCTURE DIAGRAM
Stainless steel tube
Fiber optic
Aluminum clad steel wire

Self Supporting Aerial OPGW Fiber Optic Cable Overhead Optical Ground Wire 48 Core 6
PRODUCT DESIGN
Self Supporting Aerial OPGW Fiber Optic Cable Overhead Optical Ground Wire 48 Core 7
Accept customization,Put Your Good Idea into Reality and Click “Contact Us ”
Self Supporting Aerial OPGW Fiber Optic Cable Overhead Optical Ground Wire 48 Core 8
COMPANY PROFILE

Self Supporting Aerial OPGW Fiber Optic Cable Overhead Optical Ground Wire 48 Core 9
Dongguan HX Fiber Technology Co., Ltd., one of the most outstanding fiber optic cable manufacturers in south China, located next to the sea port of Shenzhen. The company was founded in 2010 with its own brand HXCOWO, dedicated to providing optical fiber cabling system solutions for data centers, enterprise networks, and operators. Annually, there are a bunch of customers visited us from around the world. With over 10 years' development, a registered capital of USD 5 million, a 6,000 sqm workplace, 7 production assemblies were built and about 70 skilled workers were together. Our monthly output can reach up to 1500km fiber optic cables. With the belief of Quality is our culture & Long term business is our goal. So quality is always put to be a first place in our factory. With an excellent management system, we passed ISO9001:2015 certificate in 2021. on Jule 18, 2021, Alibaba group visited us and verified us. We gained the honorary and passed by world-leading inspection company Intertek group. We develop and produce a variety of fiber optical cables and patch cords. with Models such as FTTH, GYXTW, GYFTY, GYTS, GYTA, GYTA53, GYTS53, ADSS, GYTC8S etc. There are many Chinese companies and trading companies purchase fiber cables from us and resale it to the worldwide. Our products are exported to the Europe and America, Asia, South America, Africa etc. Welcome to visit our factory !
SERVICE & PRODUCTION CAPACITY
Self Supporting Aerial OPGW Fiber Optic Cable Overhead Optical Ground Wire 48 Core 10
FOREIGN EXHIBITIONS
Self Supporting Aerial OPGW Fiber Optic Cable Overhead Optical Ground Wire 48 Core 11
COOPERATIVE BRAND & CERTIFICATION
Self Supporting Aerial OPGW Fiber Optic Cable Overhead Optical Ground Wire 48 Core 12
PAYMENT & TRANSPORTATION METHOD
Self Supporting Aerial OPGW Fiber Optic Cable Overhead Optical Ground Wire 48 Core 13
FAQ
1. Are you the real manufacturer?
Yes.  We are the real manufacturer  with more than 20 years’ history, welcome to visit us!

2. What is your minimum quantity?
1KM. We support new project of our customers, trial order is available.

3.Can I get a sample?
Yes, we provide FREE sample and you just need to pay for express freight.

4. Can you customize the product?
Yes, we can customize according to your requirements(logo,package,printing and so on).

5. How long will it take you to deliver?
Our usual delivery date takes 15 to 20 days.

6. Can we trust you?
We founded the factory has 18 years of history, products exported to over 25 countries.

7. How about your price?
At the same price, our quality is better; at the same quality, our price is more favorable.

8. What about Payment?
L/C,T/T,Western Union and Paypal are acceptable.

9. What mode of transportation do you support?
Ocean transportation,air transport,Express, etc.
